High-end Hardware Bench

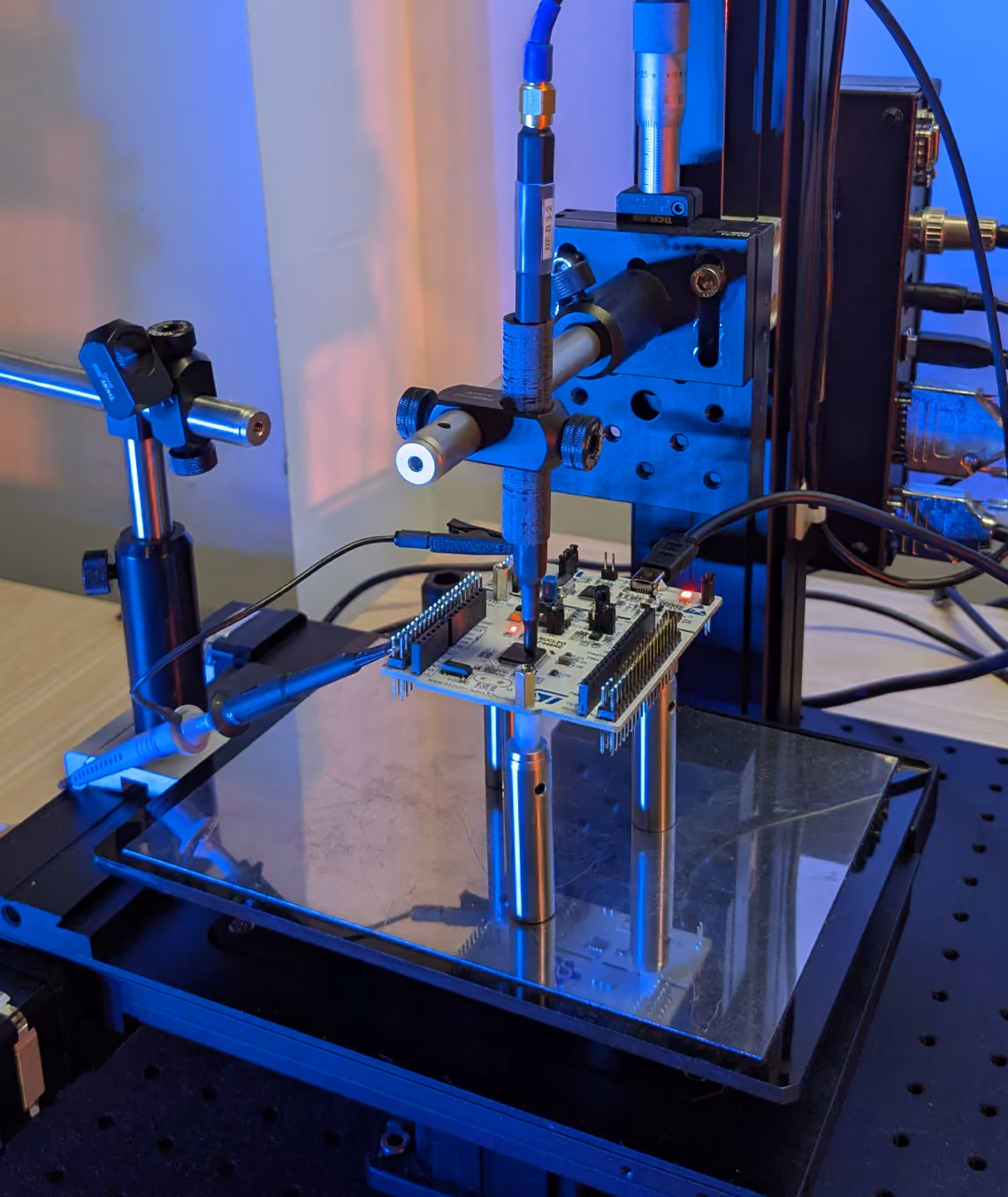

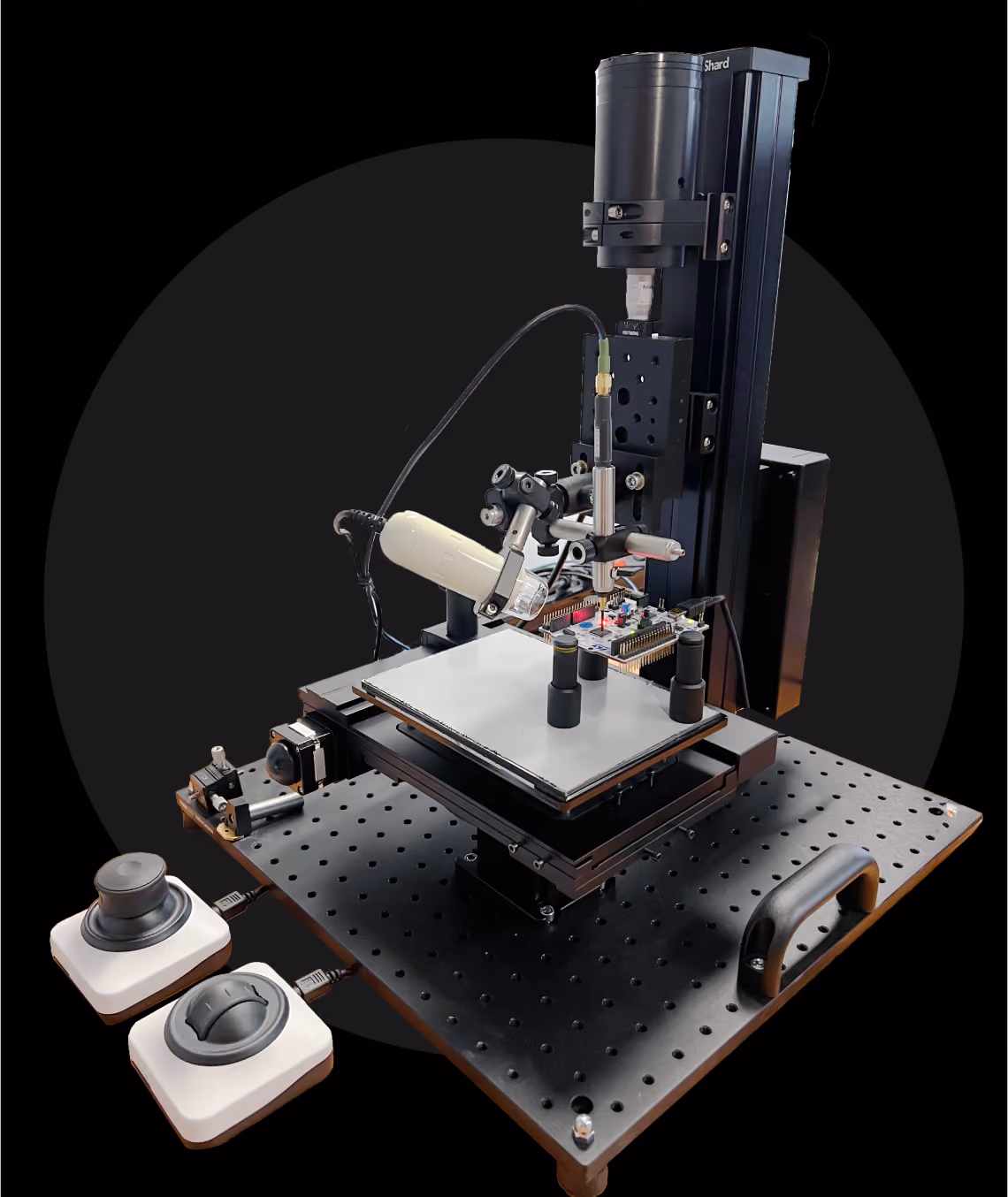

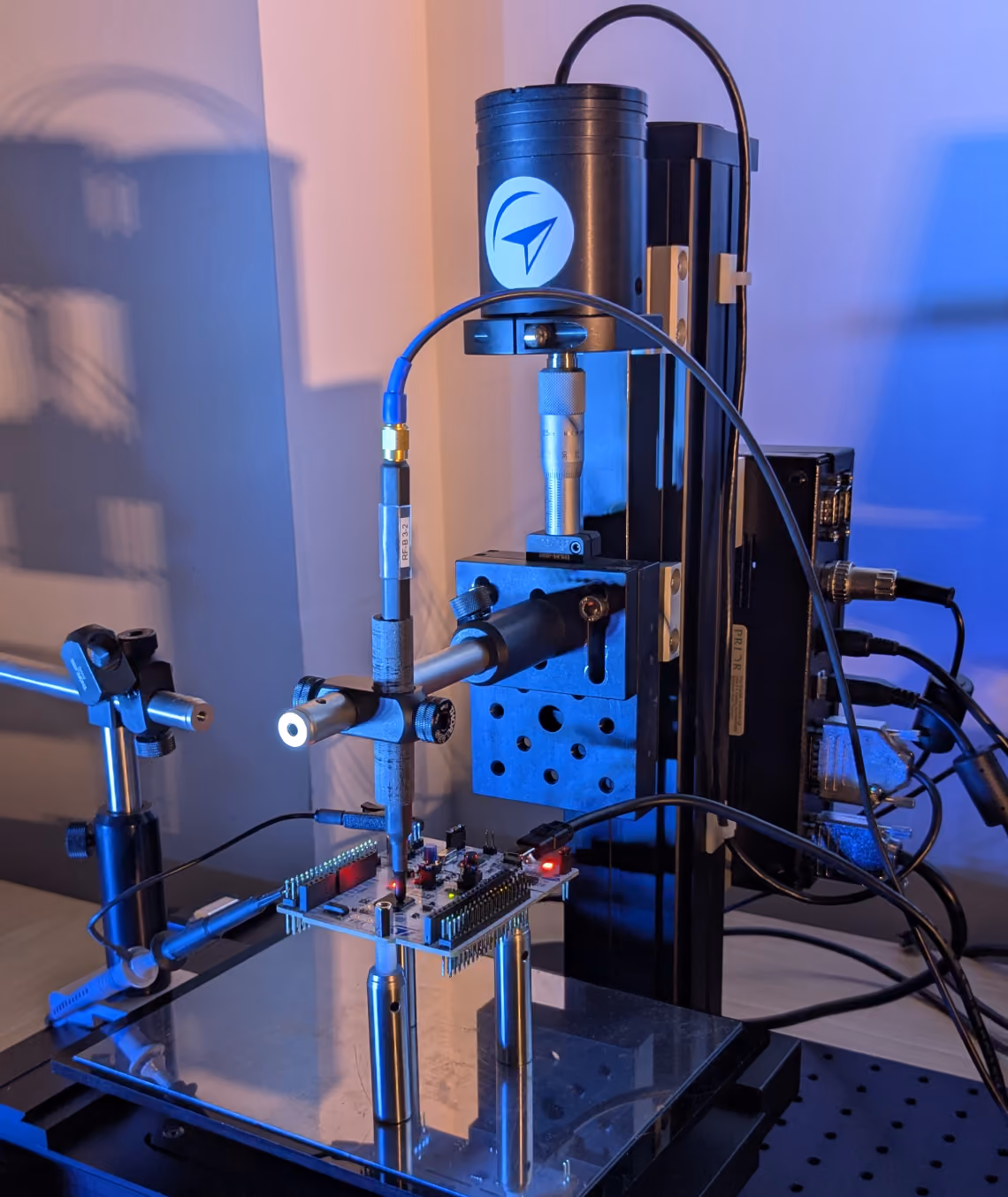

A precision side-channel hardware bench combining a motorised XY stage with a manual Z-axis actuator for precise probe positioning, plus a probe holder, digital microscope, mirrored backside-view plate, and magnetic legs for firm DUT positioning.
Product Overview
1 µm XY/Z resolution with ±5 µm XY repeatability, for fine-tuning probe placement without harming the probe or DUT.
125 x 75 mm motorised XY movement range, controllable via joystick or programmatically, for running EM scans and cartographies.
Probe holder for Langer and high-end ICR probes, a rotating platform, and magnetic legs for firm DUT positioning, with the ability to probe both sides simultaneously.
Mirrored working plate and an articulated digital microscope for zoomed, magnified views of the DUT backside.
Heavy backplate and optical breadboard for stability, with rails and holders to mount probes or cameras for cartography.

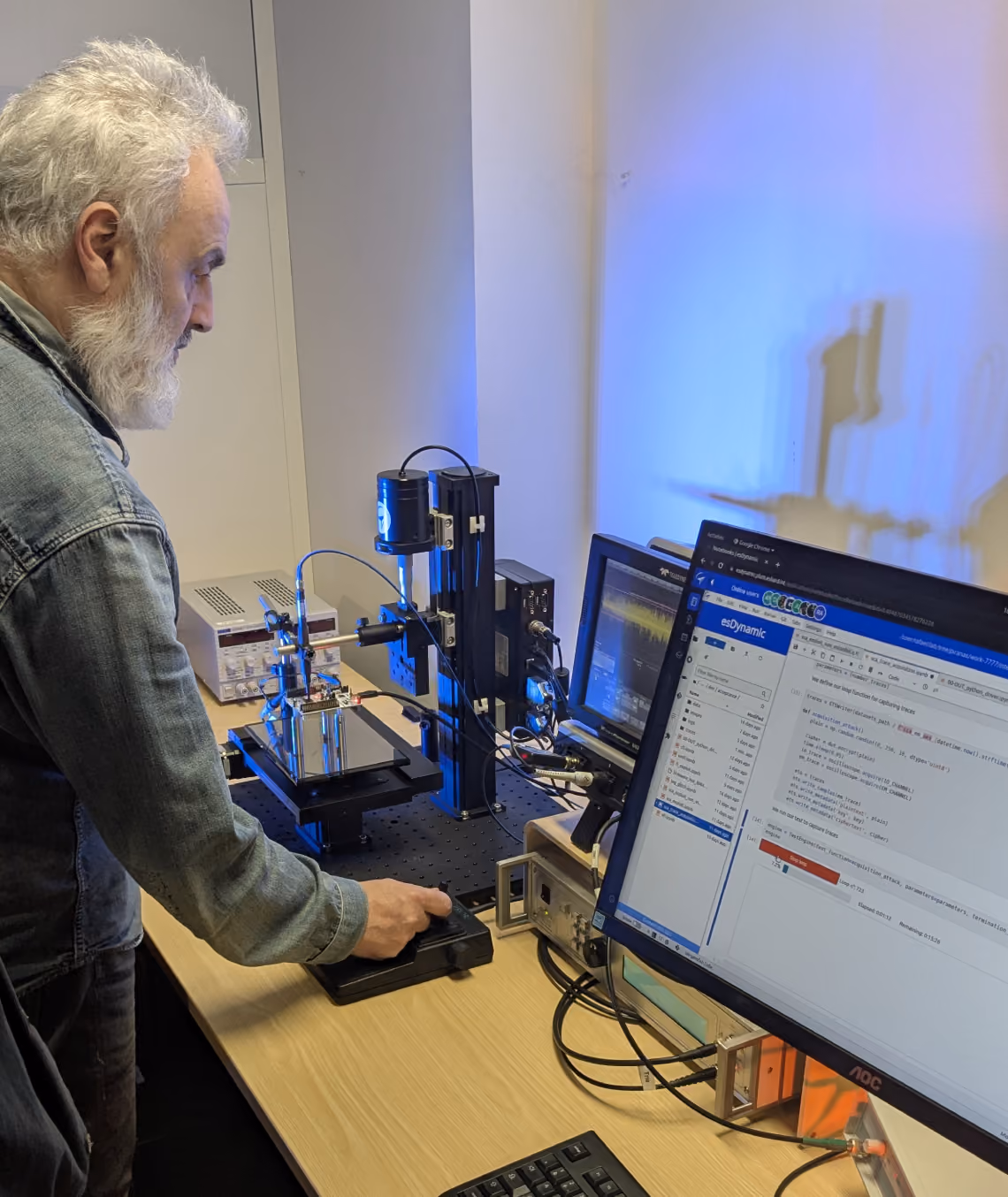

Integrates directly with esDynamic as a Python device for scripted configuration, control, and acquisition workflows.
Technical Specifications
Built by experts, not vendors.
With over 10 years running physical attacks against real targets, our hands-on experience shapes every device we qualify for our catalog, the same hardware we put to work on our own attacks before it ever reaches you.
Frequently Asked Questions
Our hardware is engineered to operate seamlessly within the esDynamic ecosystem. Instead of spending weeks writing custom scripts to synchronize probes and oscilloscopes, esDynamic acts as the central orchestrator so you can focus on running attacks from day one.
Yes. Our hardware is designed to integrate smoothly into your current lab environment. It easily connects with the high-end oscilloscopes and custom target boards you already rely on, enhancing your setup without forcing a total rebuild.
Hardware includes a standard 1-year manufacturer warranty. To get your team up and running instantly, we provide detailed "how-to" notebooks. Beyond that, our analysts are always available to help you fine-tune specific setups, and specialized training on the attacks themselves.
Absolutely. We’ve built turnkey hardware security labs from scratch for top-tier organizations like Dekra and ESA. Contact our team, and we’ll help you design the exact mix of tools your evaluation goals require.
